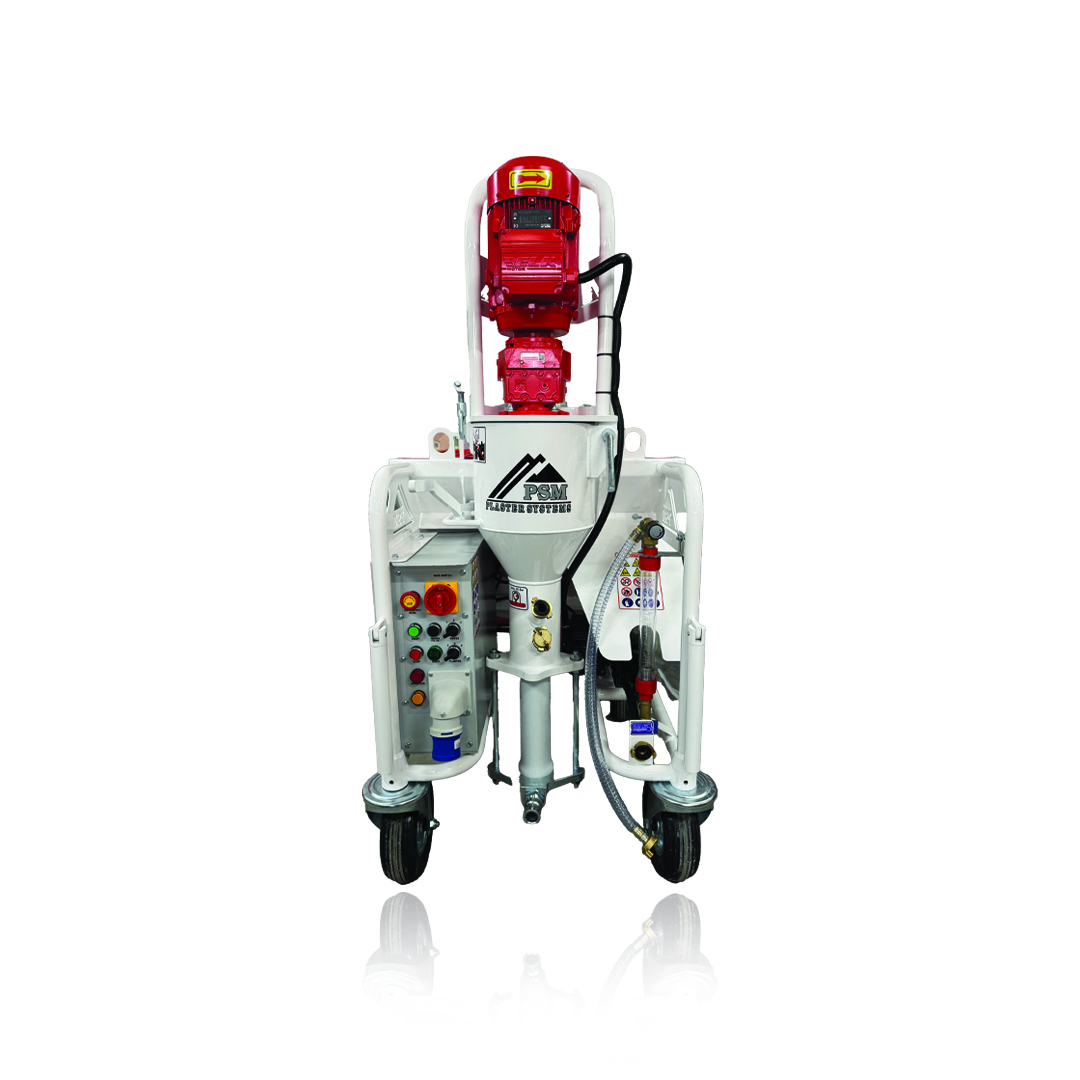

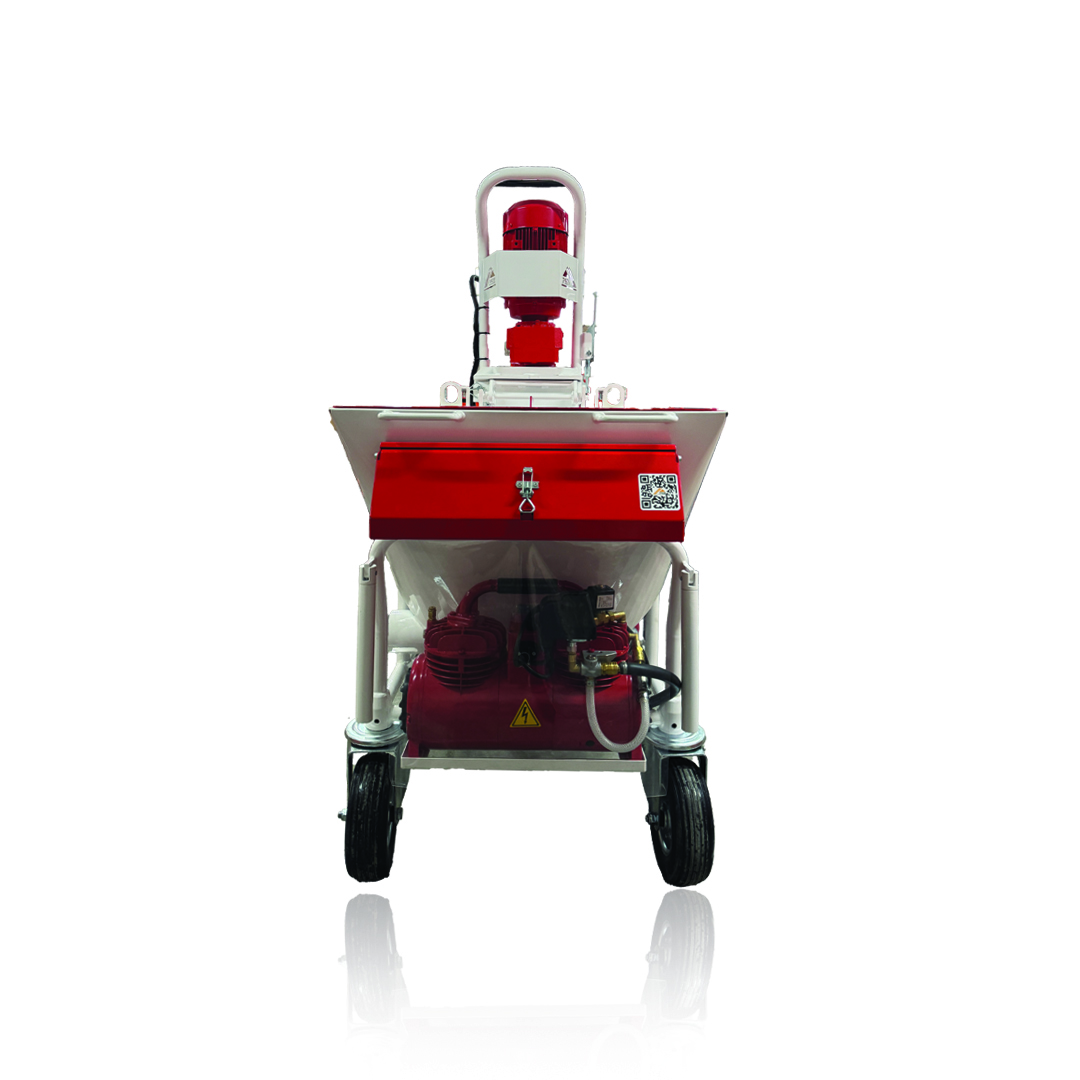

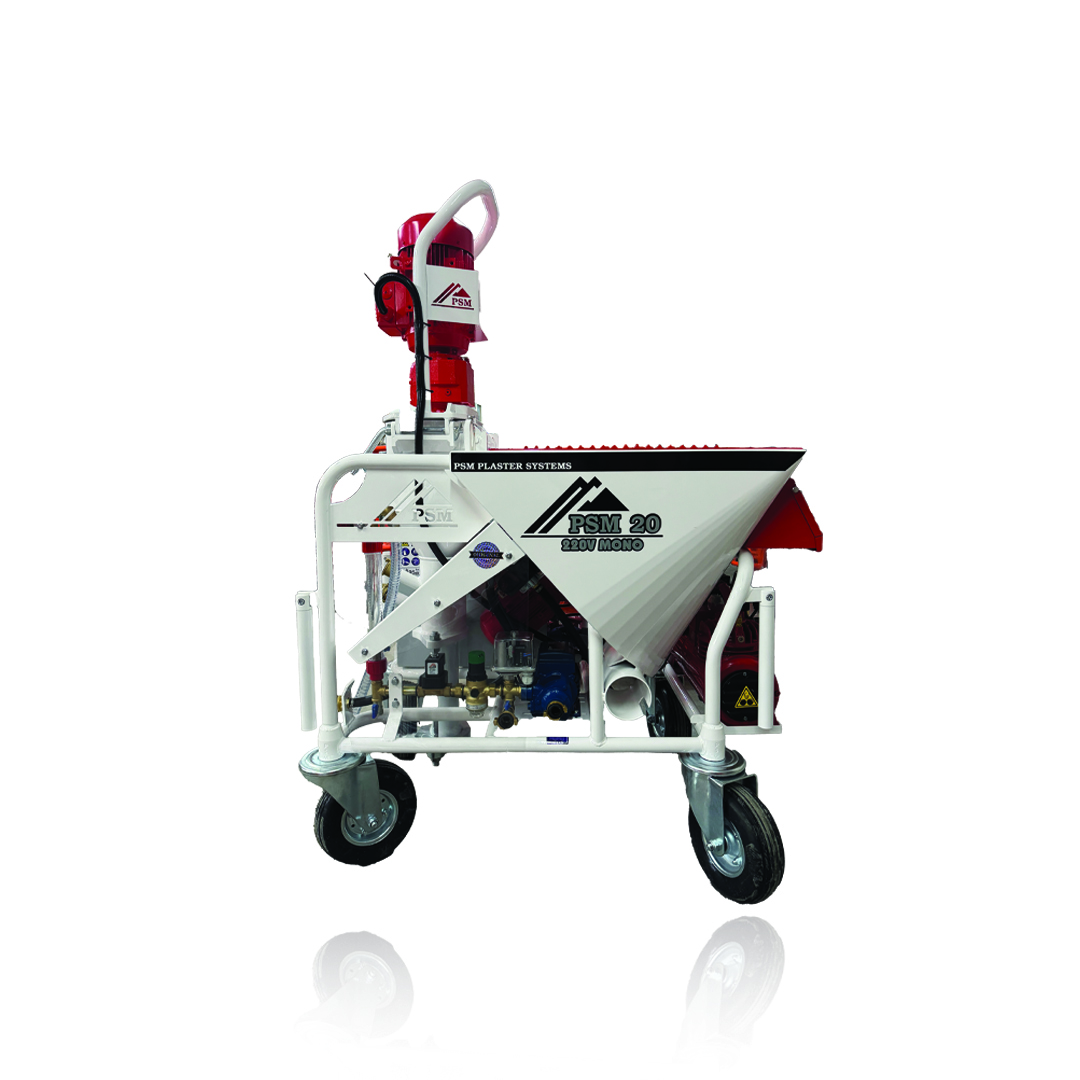

PSM 20 Mono
PSM 20 Mono is a ready to use plastering machine that can be used in both interior and exterior plaster applications by pumping and spraying all types of gypsum or cement based dry mixes.
PSM 20 Mono which can be used with 230 V residential electricity, can be plugged into a standard outlet. Its robust chassis makes it resistant to harsh construction site environments and easy to transport.
Highlights
- 230 V ready-mixed plaster machine
- Homogeneous mixing
- Italian water engine
- Domestic engine
- Easy to carry
- Easy to use electrical panel
- 1 year warranty
Technical Specifications
Pumping Capacity5-22 l/min
Pumping Distance (Horizontal)30 m
Pumping Pressure30 bar
Power230 V – 50 Hz
Pumping Motor4.3 kW
Mixer Motor0.55 kW
Water Pump0.50 HP / 0.37 kW, Made in Italy, 230 V
Compressor0.9 kW - 250 l/m - 5.5 bar
Mortar HoseØ 25 mm 15 m
Hopper Capacity130 l
Length1250 mm
Width750 mm
Height1500 mm
Weight285 kg
Field of Applications
Premixed Gypsum Plasters
Cement Based Plasters
Lime-Based Gypsum Plasters
Self Leveling Plasters
Interior and Exterior Plasters
Insulating Plasters
Reinforcing and Adhesive Mortars
Door Mortars
