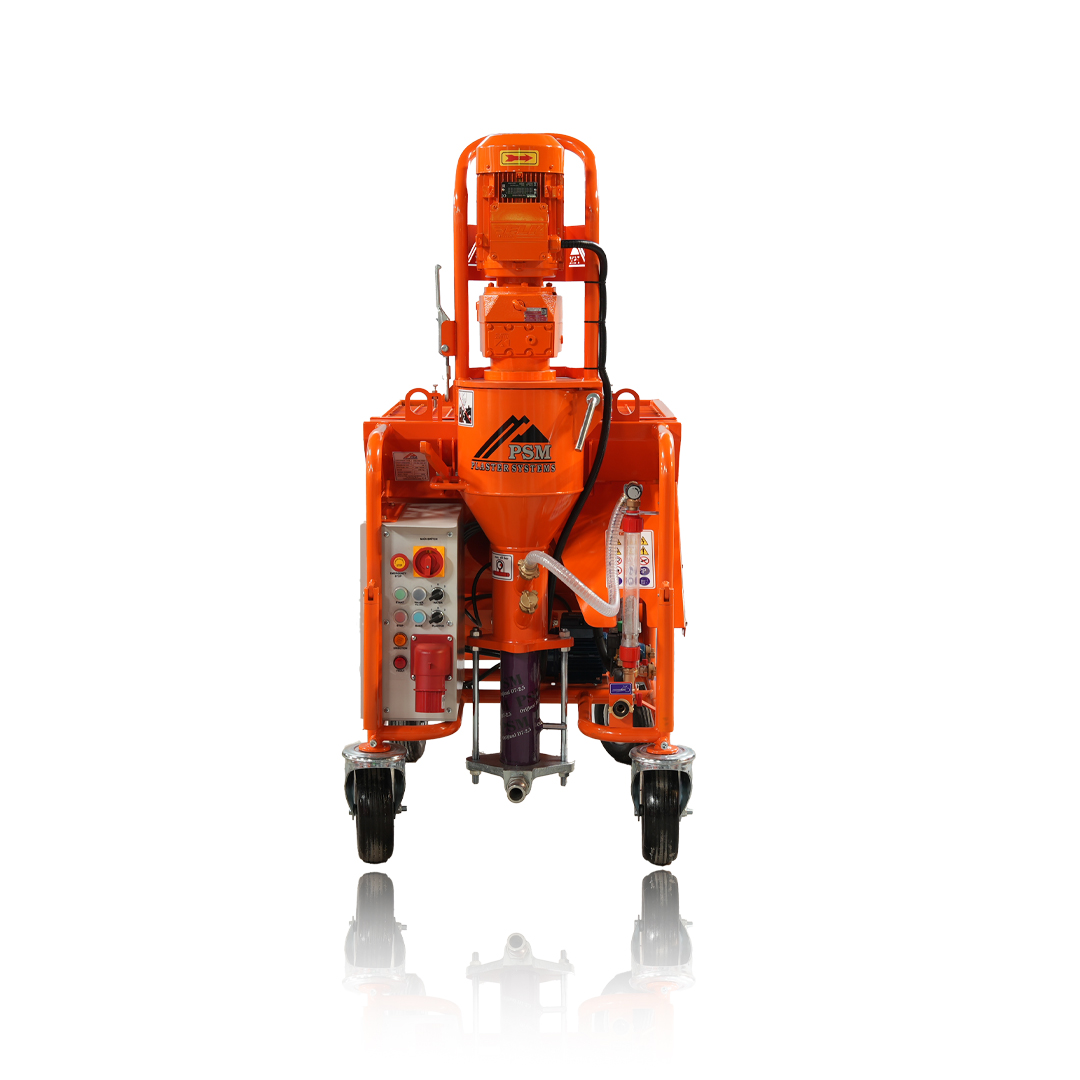

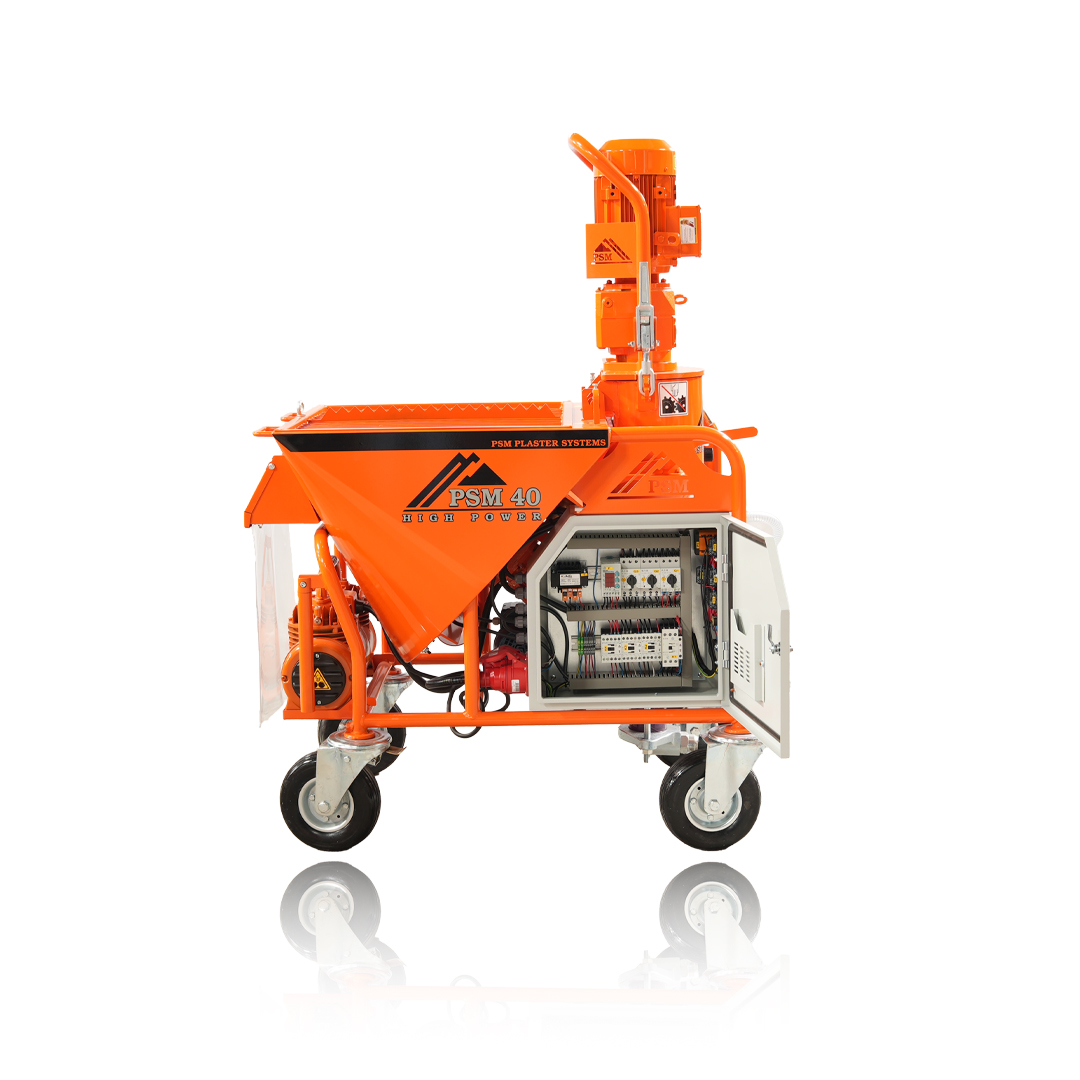

PSM 40 High Power
PSM 40 High Power is a high performance ready mixed plaster machine that can be used in both interior and exterior plaster applications by pumping and spraying all types of plaster or cement based dry mixes.
Its robust chassis makes it resistant to harsh construction site environments. Its Italian stainless steel water motor, reinforced geared motor and easy to use electrical panel provide high performance.
Highlights
- High performance ready mixed plaster machine
- Reinforced chassis
- Reinforced geared motor
- Italian water motor
- Homogeneous mixing
- Easy to use electrical panel
- 1 year warranty
Technical Specifications
Pumping Capacity5-40 l/min
Pumping Distance (Horizontal)40 m
Pumping Pressure30 bar
Power380 V – 50 Hz
Pumping Motor5.5 kW
Mixer Motor0.55 kW
Water Pump0.50 HP / 0.37 kW, Made in Italy, 380 V
Compressor0.9 kW - 250 l/m - 5.5 bar
Mortar HoseØ 25 mm 15 m
Hopper Capacity130 l
Length1250 mm
Width750 mm
Height1500 mm
Weight350 kg
Field of Applications
Premixed Gypsum Plasters
Cement Based Plasters
Lime-Based Gypsum Plasters
Self Leveling Plasters
Interior and Exterior Plasters
Insulating Plasters
Reinforcing and Adhesive Mortars
Door Mortars
380 V – 50 Hz
40 m
