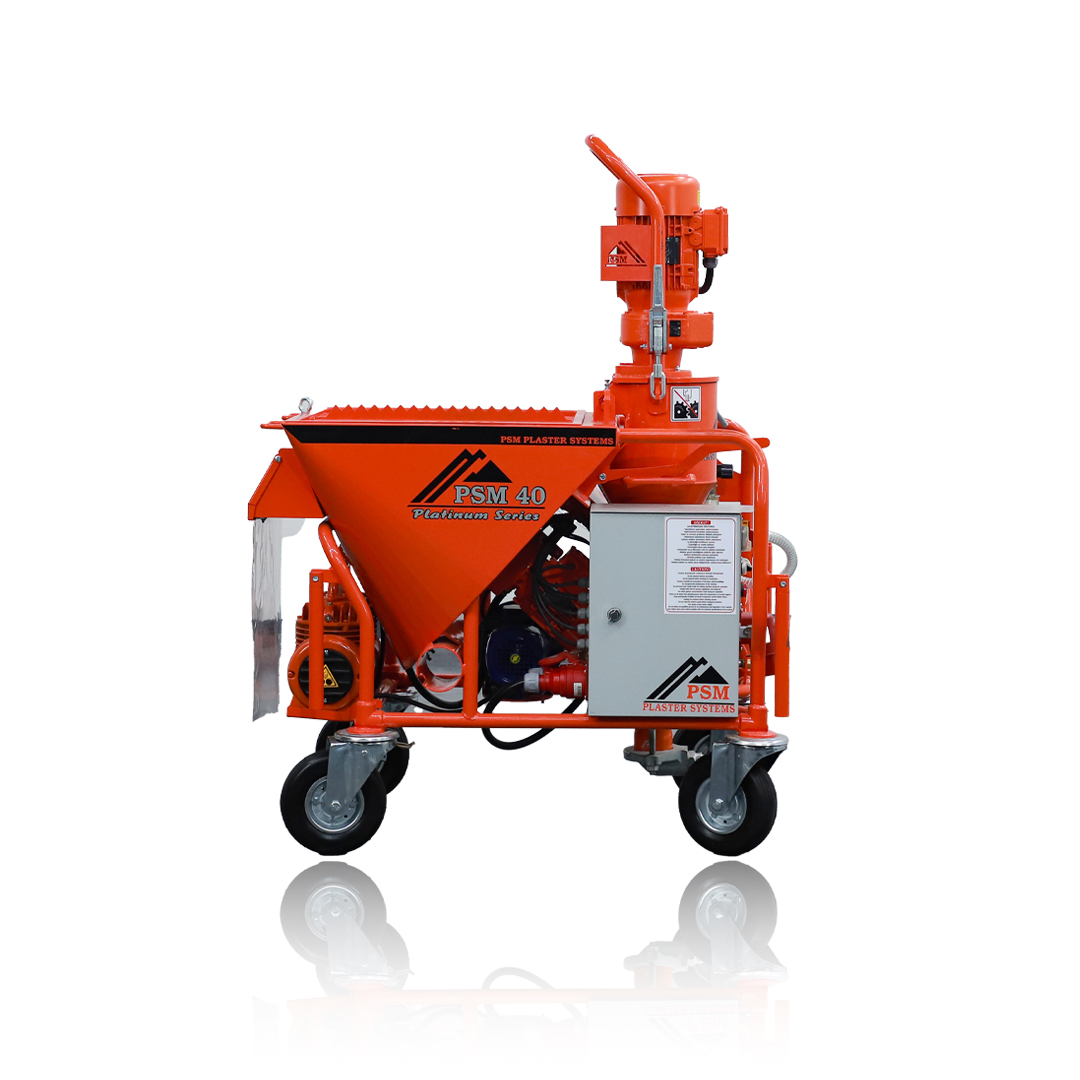

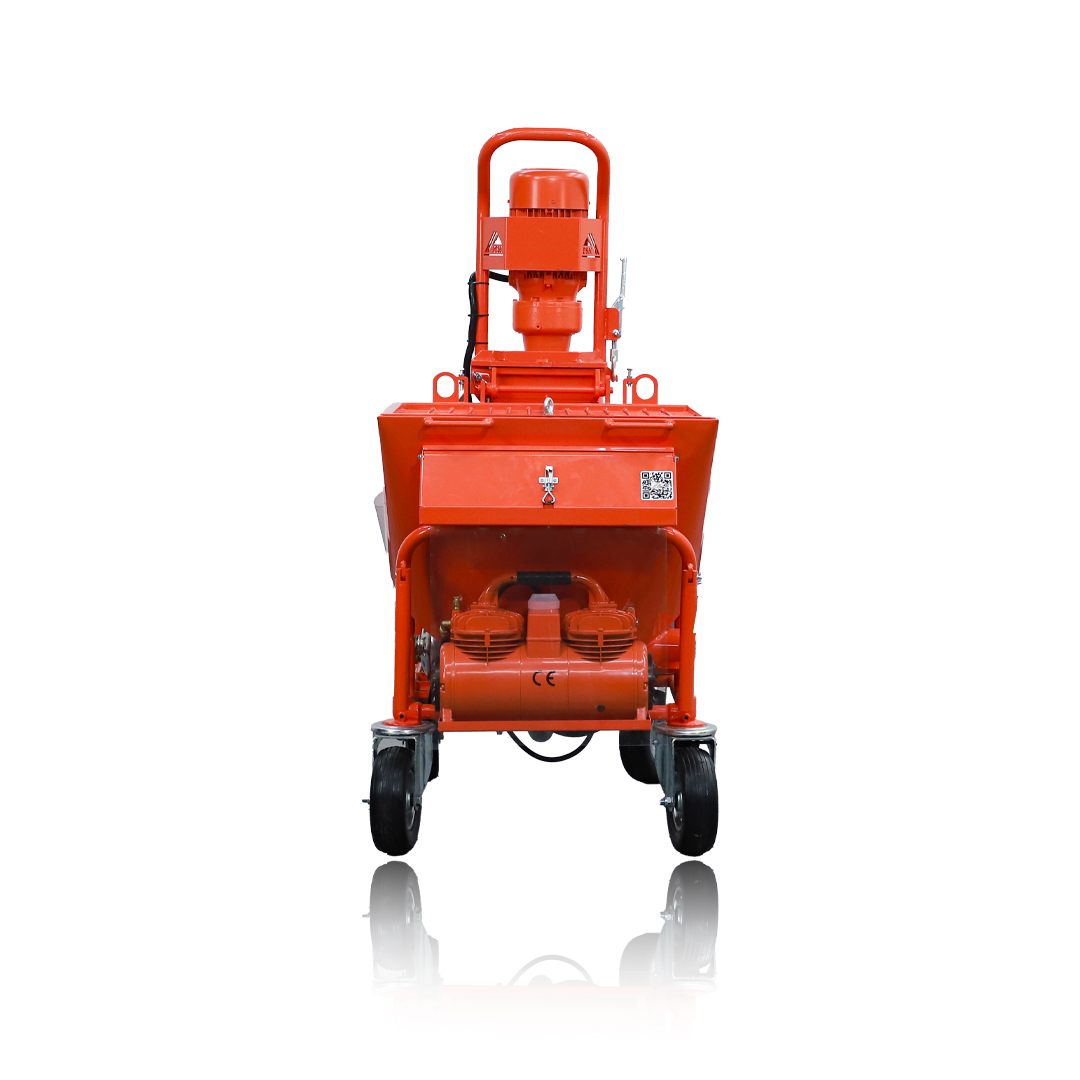

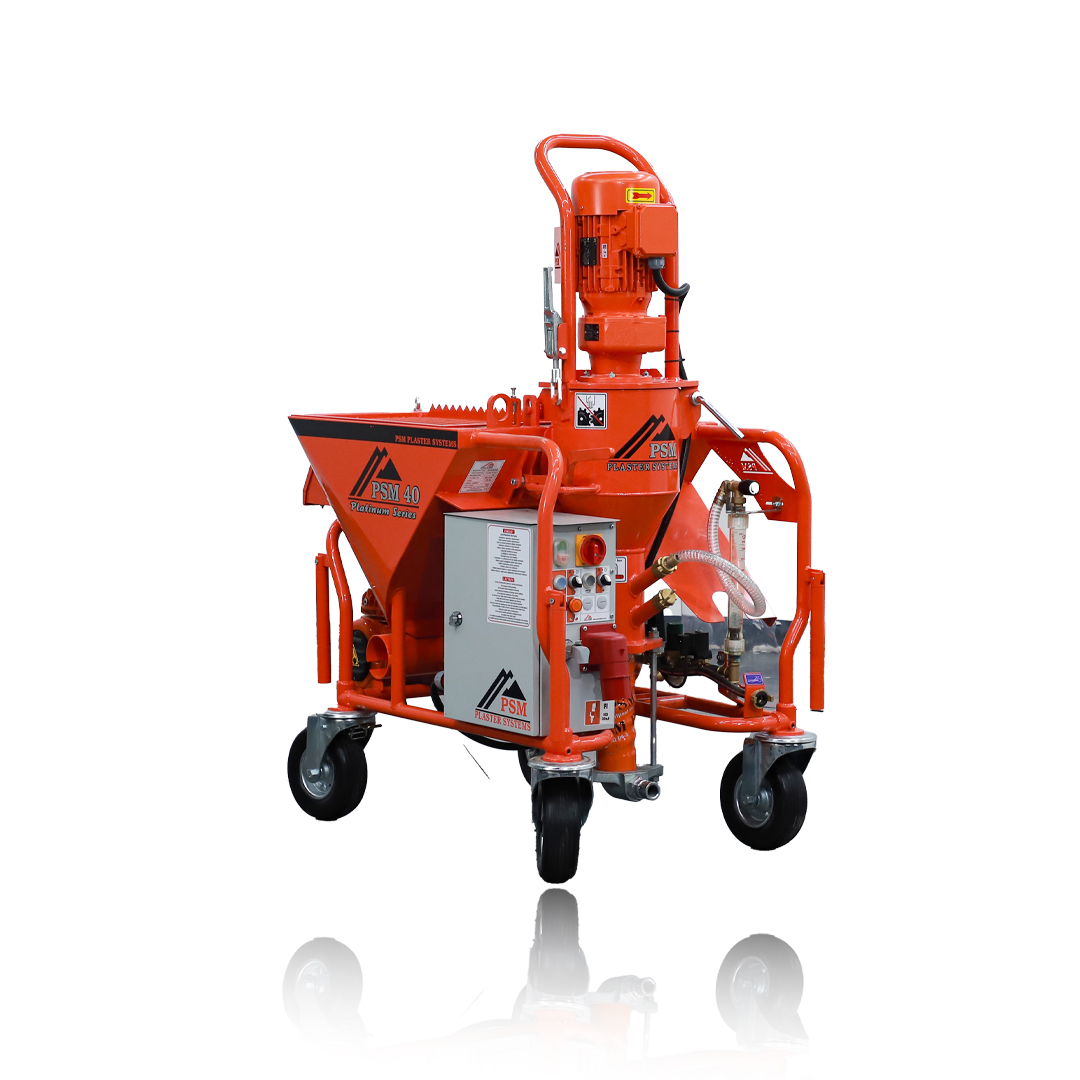

PSM 40 Platinum
PSM 40 Platinum is the most powerful ready mix plaster machine in its series, capable of pumping and spraying all types of gypsum or cement based dry mixes, suitable for both interior and exterior plastering applications.
Its reinforced new chassis design ensures durability even in the toughest construction site conditions. Equipped with a German motor, an Italian stainless steel water pump, and a state of the art electrical panel, it delivers high performance. The water and air systems are made from German made materials, making it the number one choice of global firms.
Highlights
- Highest performance ready mix plaster machine built to European standards
- Reinforced new chassis design
- German gearbox
- Italian water pump
- German water and air installation
- Homogeneous and high-quality mixing
- State of the art electrical panel
- 2-year warranty
Technical Specifications
Pumping Capacity5-40 l/min
Pumping Distance (Horizontal)40 m
Pumping Pressure30 bar
Power380 V – 50 Hz
Pumping Motor5.5 kW, Made in Germany
Mixer Motor0.55 kW
Water Pump1.00 HP / 0.75 kW, Made in Italy, 380 V
Compressor0.9 kW - 250 l/m - 5.5 bar
Mortar HoseØ 25 mm 20 m
Hopper Capacity130 l
Length1250 mm
Width750 mm
Height1500 mm
Weight350 kg
Field of Applications
Premixed Gypsum Plasters
Cement Based Plasters
Lime-Based Gypsum Plasters
Self Leveling Plasters
Interior and Exterior Plasters
Insulating Plasters
Reinforcing and Adhesive Mortars
Door Mortars
