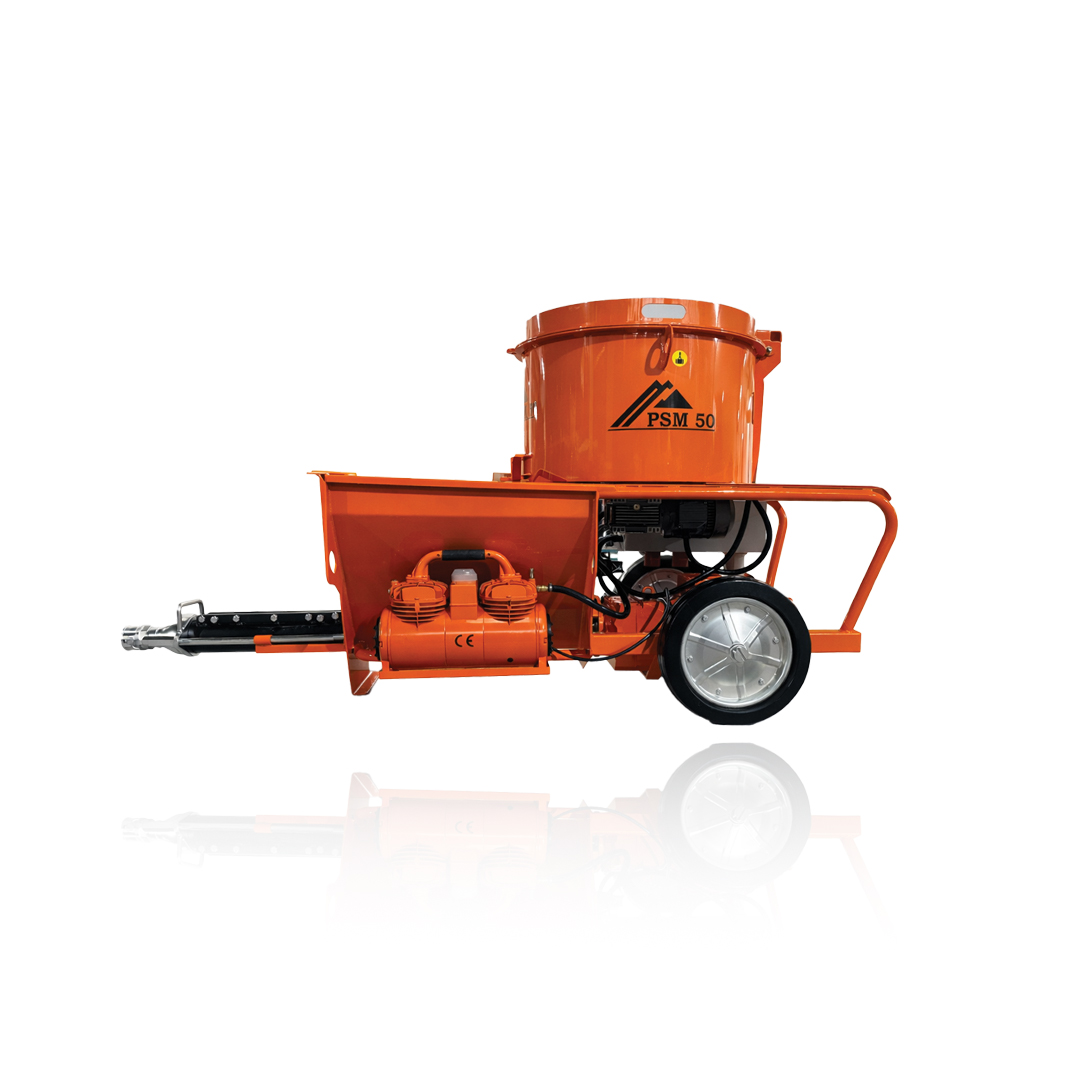

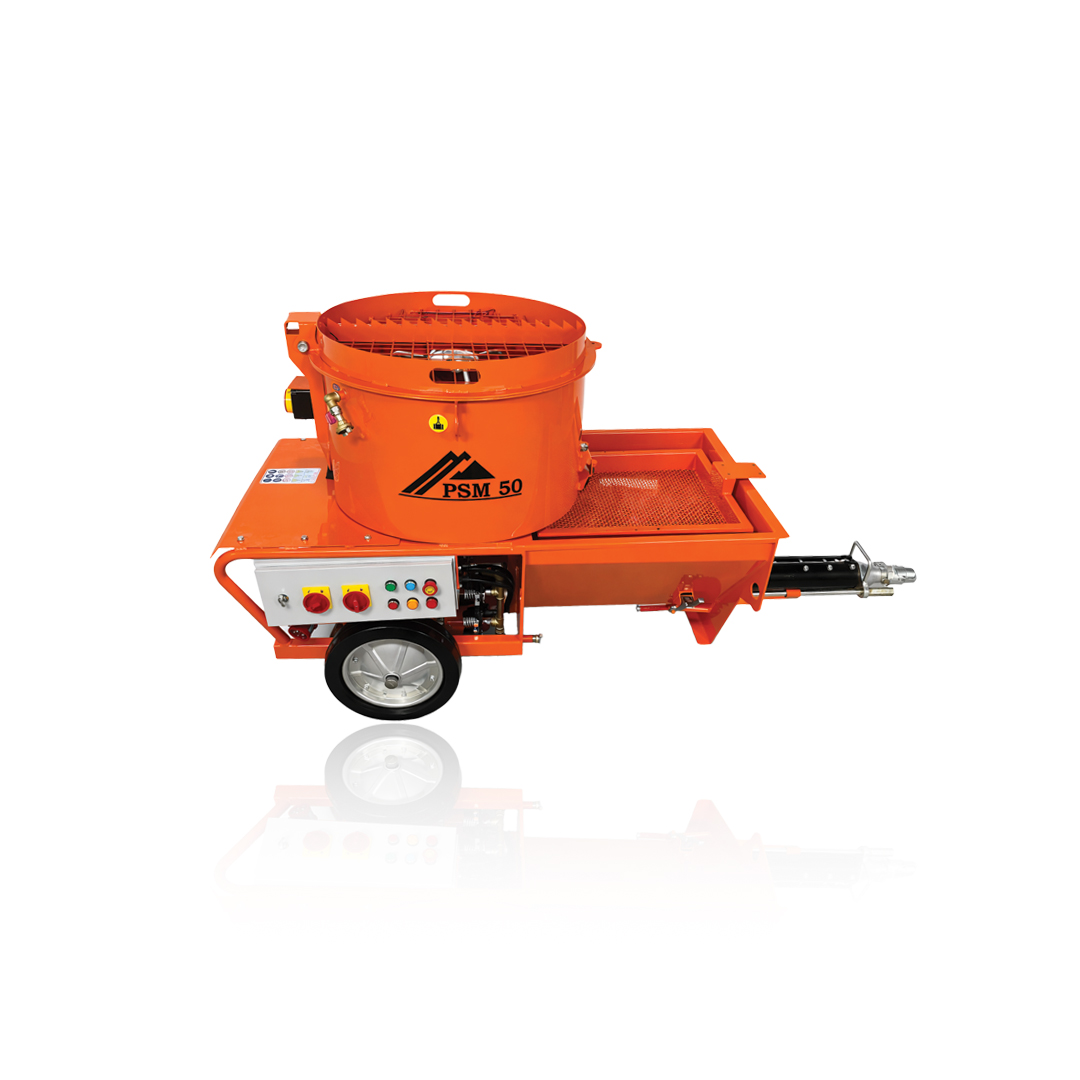

PSM 50
PSM 50 black plaster machine is the right choice for preparing traditional mortar mixtures on construction sites.
As a mid-range mortar pump, the PSM 50 pumps plaster mortars, wall mortars, and floor screeds prepared with its integrated batch mixer directly to the point of application.
The machine is supplied fully equipped for mortar applications, including hoses, a spray gun, and a compressor.
Technical Specifications
Pumping Capacity10-40 l/min
Pumping Distance (Horizontal)60 m (max)
Pumping Pressure20 bar
Power400 V – 50 Hz
Pumping Motor7.5 kW
Mixer Motor2.2 kW, 400 l
Mortar HoseØ 35 mm 40 m
Hopper Capacity130 l
Length2200 mm
Width860 mm
Height1120 mm
Weight366 kg
Transport Height630 mm
Field of Applications
Construction Site Mortar
Wall and Lightweight Wall Mortar
Reinforcement (Strengthening) Mortar
Cement-Based Plasters
Clay Plasters (Moist Earth)
Rough (Primer) Coat
Renovation Mortar
Concrete Repair
