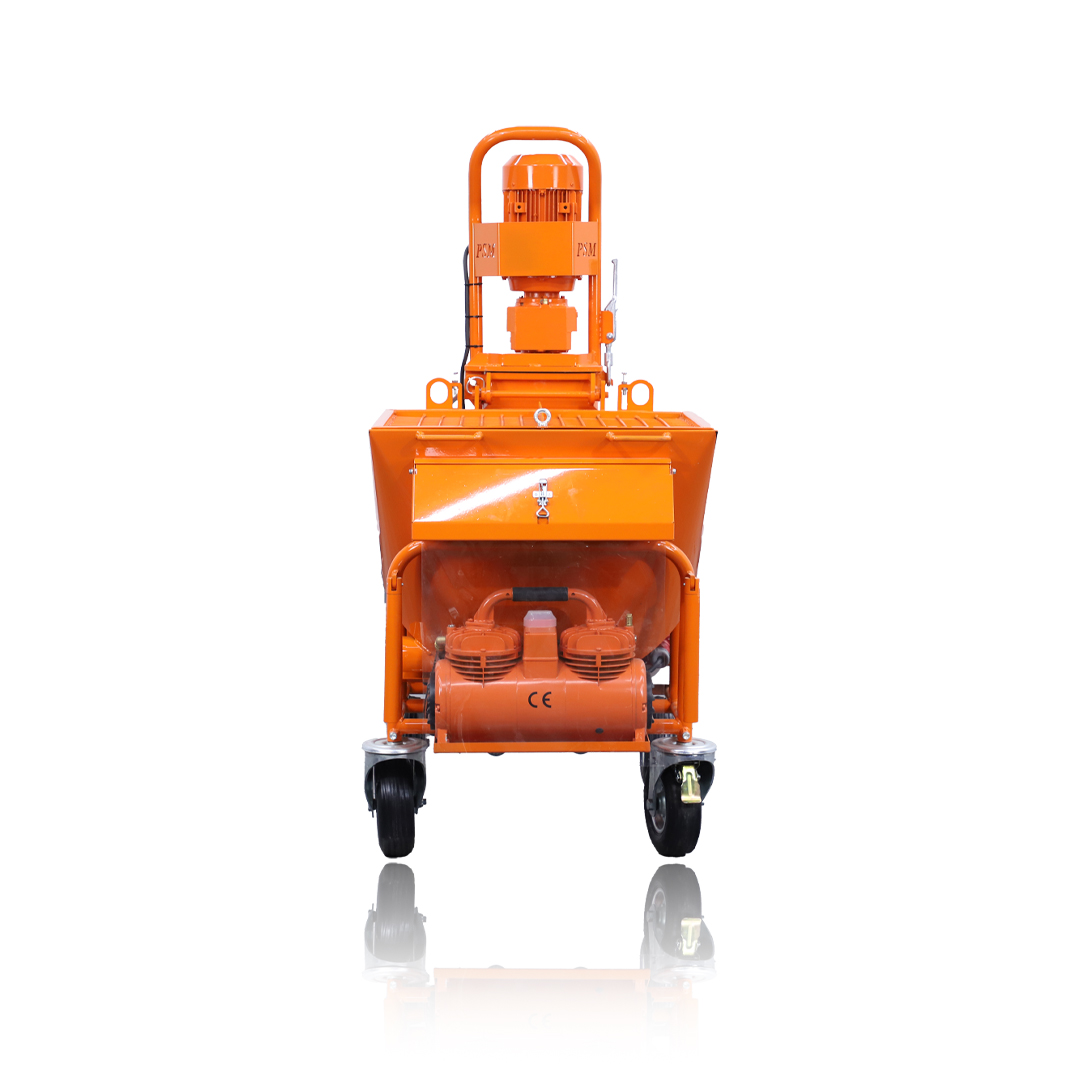

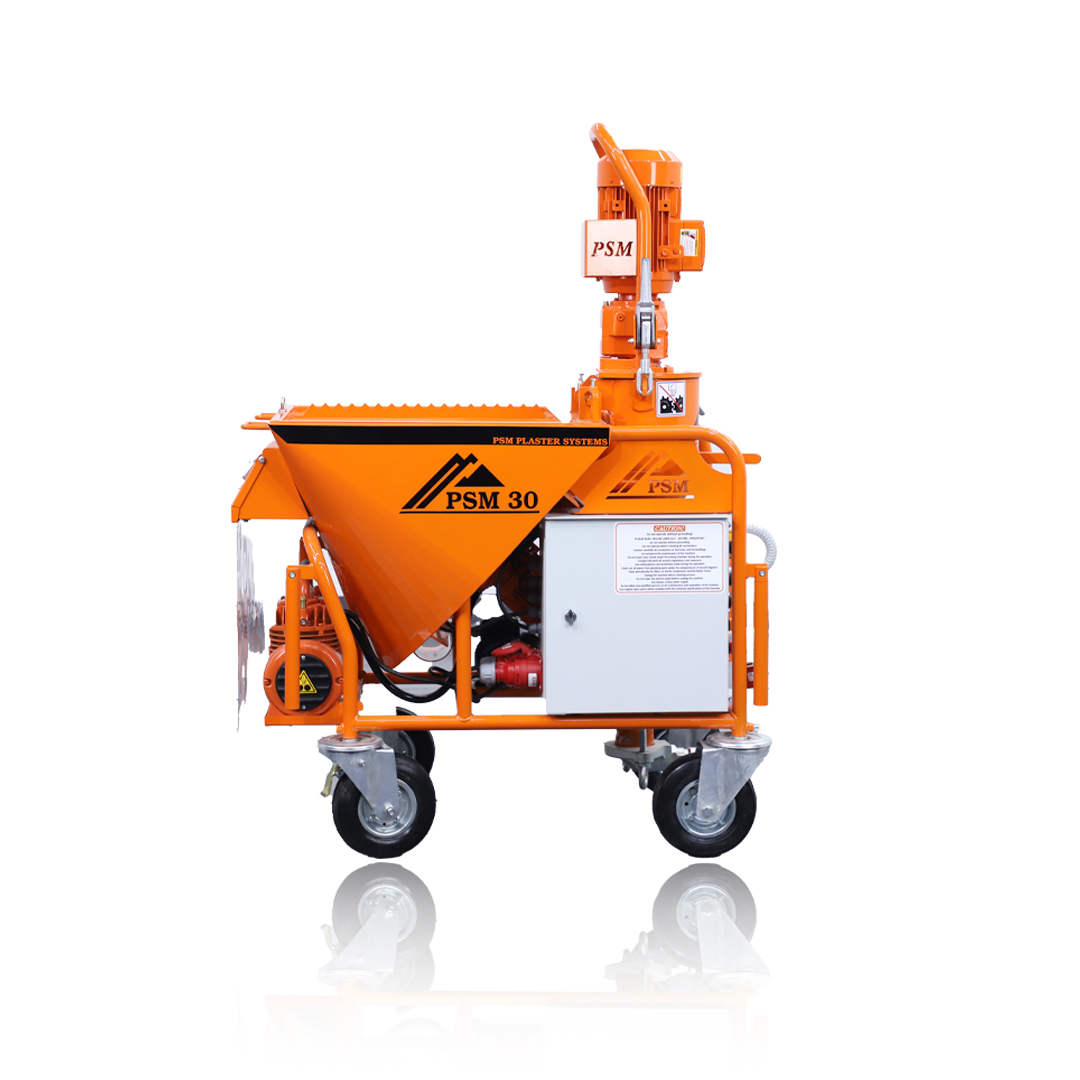

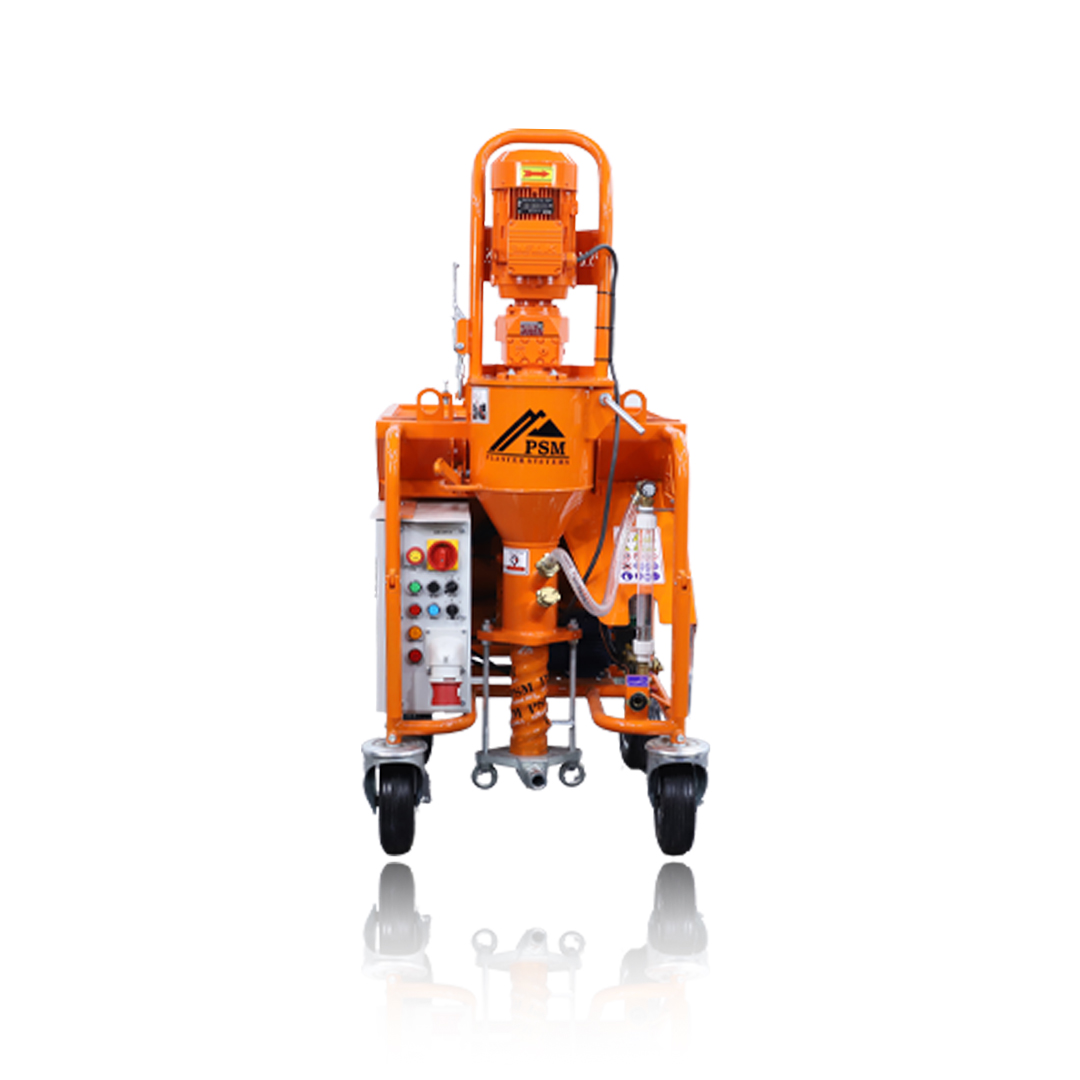

PSM 30
PSM 30 is a ready mixed plastering machine that can be used in both interior and exterior plaster applications by pumping and spraying all types of plaster or cement based dry mixes.
Its robust chassis makes it resistant to harsh construction site environments and easy to transport. It provides high performance with its Italian stainless water motor and easy to use electrical panel.
Highlights
- 380 V ready mixed plaster machine
- Homogeneous mixing
- Italian water engine
- Domestic engine
- Easy to carry
- Easy to use electrical panel
- 1 year warranty
Technical Specifications
Pumping Capacity5-40 l/min
Pumping Distance (Horizontal)40 m
Pumping Pressure30 bar
Power380 V – 50 Hz
Pumping Motor5.5 kW
Mixer Motor0.55 kW
Water Pump0.50 HP / 0.37 kW, Made in Italy, 380 V
Compressor0.9 kW - 250 l/m - 5.5 bar
Mortar HoseØ 25 mm 15 m
Hopper Capacity130 l
Length1250 mm
Width750 mm
Height1500 mm
Weight350 kg
Field of Applications
Premixed Gypsum Plasters
Cement Based Plasters
Lime-Based Gypsum Plasters
Self Leveling Plasters
Interior and Exterior Plasters
Insulating Plasters
Reinforcing and Adhesive Mortars
Door Mortars
